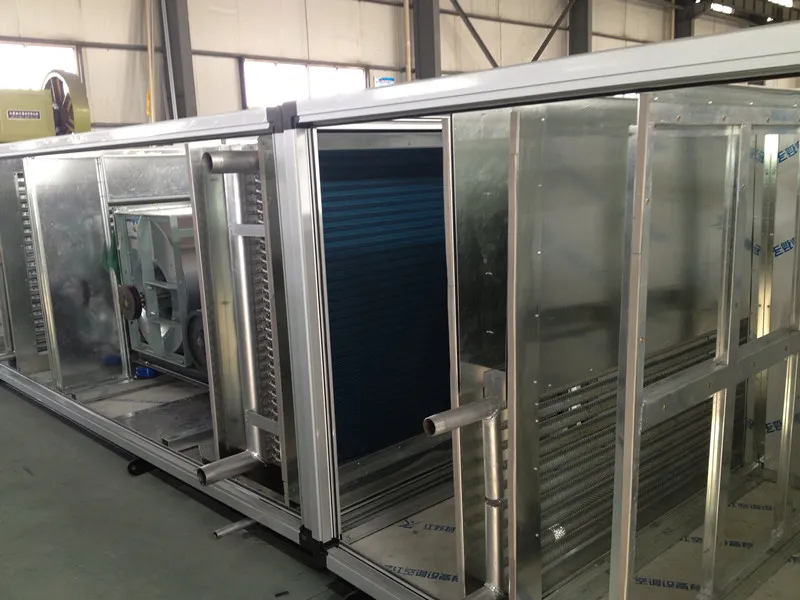

Kab rov tav Cua Handleryog hom ntawmCua tuav chav tsev (AHU)Tsim los installation hauv cov chaw sib nrug xws li ntho nthab, hauv qab, lossis chaw nkag. Nws yog muab tso rau tav toj, ua rau nws xaiv qhov zoo tshaj plaws rau cov tsev thiab cov tsev lag luam uas muaj qhov chaw ntsug tsawg. Cov chav ua haujlwm no ua haujlwm nrog rau cov cua txias lossis cua sov kom ua kom cua ua ke thoob plaws hauv lub tsev.
Chaw ua uas tsis tau haus
Ua kom txiastej, dej ntim, dej tsis kam
Txias mob: Inlet huab cua qhuav teeb kub kub 27 degree, inlet dej kub 7 degree, qhov hluav taws xob dej kub 12 degree
|
Tus qauv |
Ob-kab yeeb nkab |
Plaub-kab yeeb nkab |
Rau-kab yeeb nkab |
Yim-kab yeeb nkab |
||||||||
|
cua txias(Kw |
Dej ntim(m³/h) |
Dej tiv (KPA) |
cua txias(Kw) |
Dej ntim (m h) |
Dej tiv (KPA) |
cua txias(kw) |
Dej ntim (m³/h) |
Dej tiv (KPA) |
cua txias (Kw |
Dej ntim (m³/h) |
Dej tiv(KPA) |
|
|
Zk -05 |
18.8 |
3.23 |
10.1 |
29.4 |
5.01 |
9.76 |
37.8 |
6.49 |
16.99 |
45.7 |
7.85 |
10.44 |
|
Zk -10 |
34.7 |
5.89 |
10.5 |
58.6 |
10.35 |
11.65 |
75.4 |
12.96 |
10.08 |
91.2 |
15.70 |
12.82 |
|
Zk -15 |
53.4 |
9.16 |
9.8 |
87.9 |
15.08 |
7.21 |
113.1 |
19.5 |
12.11 |
136.8 |
23.52 |
15.12 |
|
Zk -20 |
70.6 |
12.14 |
9.8 |
117.3 |
20.16 |
8.25 |
150.8 |
26.21 |
14.07 |
182.4 |
31.96 |
17.48 |
|
Zk -25 |
92.9 |
15.83 |
11.6 |
146.1 |
25.12 |
10.24 |
188.1 |
33.90 |
11.77 |
227.5 |
39.11 |
14.76 |
|
Zk -30 |
113.6 |
19.2 |
11.8 |
175.2 |
30.12 |
11.16 |
225.6 |
38.90 |
13.10 |
273.4 |
47.00 |
16.28 |
|
Zk -40 |
144.4 |
24.82 |
12.4 |
232.8 |
40.03 |
12.93 |
300.2 |
51.61 |
15.73 |
362.2 |
62.27 |
19.20 |
|
Zk -50 |
180.5 |
30.61 |
10.4 |
292.3 |
50.25 |
7.47 |
375.3 |
64.52 |
17.00 |
435.80 |
74.93 |
15.70 |
|
Zk -60 |
216.6 |
37.24 |
9.4 |
349.2 |
60.04 |
7.47 |
450.3 |
77.42 |
17.00 |
544.80 |
93.67 |
15.70 |
|
Zk -80 |
287.2 |
49.1 |
9.1 |
464.6 |
79.88 |
8.5 |
598.4 |
102.89 |
19.5 |
724.8 |
124.62 |
17.9 |
|
Zk -100 |
357.0 |
61.38 |
9.5 |
578.2 |
99.41 |
8.5 |
746.5 |
128.35 |
19.5 |
904.2 |
155.46 |
17.9 |
|
Zk -120 |
428.4 |
73.65 |
9.5 |
693.6 |
118.91 |
8.5 |
895.2 |
153.91 |
19.5 |
1084.8 |
186.51 |
17.9 |
|
Zk -160 |
591.2 |
101.65 |
11.2 |
921.6 |
158.48 |
10.3 |
1190.4 |
204.67 |
20.1 |
1443.2 |
255.93 |
32.4 |
|
Zk -200 |
740.1 |
127.25 |
12.8 |
1152.2 |
199.3 |
13.1 |
1488.1 |
255.86 |
26.4 |
1804.3 |
310.22 |
42.4 |
Nco tseg: Cov kev ua tau zoo ntawm chav tsev ntawm headwind ceev ntawm 2.5m / s
Cua Txias Kho Mob Kho Kom Zoo
|
Cua Kub |
Dej kub degree |
|||||
|
Ntub Dej Qho so |
Qhuav noob Qho so |
5/10 |
6/11 |
7/12 |
8/13 |
9/14 |
|
17 |
19-27 |
0.83 |
0.76 |
0.67 |
0.62 |
0.57 |
|
18 |
20-30 |
0.94 |
1.85 |
0.76 |
0.68 |
0.58 |
|
19 |
21-31 |
1.07 |
0.97 |
0.88 |
0.79 |
0.71 |
|
19.5 |
21-33 |
1.15 |
1.06 |
1.00 |
0.86 |
0.78 |
|
20 |
22-33 |
1.20 |
1.10 |
1.03 |
0.90 |
0.81 |
|
21 |
23-36 |
1.34 |
1.24 |
1.14 |
1.03 |
0.93 |
|
22 |
24-39 |
1.48 |
1.38 |
1.28 |
1.18 |
1.07 |
|
23 |
25-42 |
1.63 |
1.53 |
1.43 |
1.32 |
1.22 |
|
24 |
26-45 |
1.79 |
1.69 |
1.59 |
1.47 |
1.36 |
|
25 |
27-48 |
1.75 |
1.64 |
1.53 |
||
|
26 |
28-48 |
1.92 |
1.81 |
1.70 |
||
|
27 |
29-48 |
2.09 |
1.98 |
1.87 |
||
|
28 |
30-50 |
2.26 |
2.16 |
2.05 |
||
|
29 |
31-52 |
2.40 |
2.32 |
2.2 |
||
Kho Qhov Muag K3 Rau Lub Peev Xwm Cua Txias Thiab Dej ntws hauv qab cov cua sib txawv thiab dej kub
|
Cov thawj ceev ceev |
2.0 |
2.3 |
2.5 |
2.7 |
3.0 |
3.3 |
3.5 |
|
coefficient |
0.81 |
0.92 |
1.0 |
1.07 |
1.17 |
1.26 |
1.32 |
|
Cua Kub |
Dej kubtiv kis |
|||||
|
Ntub Dej Qho so |
Qhuav noob Qho so |
5/10 |
6/11 |
7/12 |
8/13 |
9/14 |
|
18 |
20-30 |
0.90 |
0.74 |
0.60 |
0.49 |
0.36 |
|
19 |
21-31 |
1.13 |
0.95 |
0.77 |
0.65 |
0.54 |
|
19.5 |
21-33 |
1.35 |
1.15 |
1.00 |
0.78 |
0.63 |
|
20 |
22-33 |
1.41 |
1.20 |
1.05 |
0.82 |
0.67 |
|
21 |
23-36 |
1.72 |
1.49 |
1.27 |
1.06 |
0.86 |
|
22 |
24-39 |
2.08 |
1.82 |
1.57 |
1.34 |
1.12 |
|
23 |
25-42 |
2.48 |
2.20 |
1.93 |
1.66 |
1.14 |
|
24 |
26-45 |
2.95 |
2.62 |
2.33 |
2.03 |
1.76 |
|
25 |
27-48 |
2.78 |
2.46 |
2.16 |
||
|
26 |
28-48 |
3.30 |
2.94 |
2.60 |
||
|
27 |
29-48 |
3.80 |
3.50 |
3.12 |
||
|
28 |
30-50 |
4.14 |
4.10 |
3.70 |
||
|
29 |
31-52 |
4.14 |
4.10 |
3.70 |
||
Kev Kho Mob K4 rau dej tsis kam raws li cov cua sib txawv thiab dej kub
|
Cov thawj ceev ceev |
2.0 |
2.3 |
2.5 |
2.7 |
3.0 |
3.3 |
3.5 |
|
coefficient |
0.9 |
0.96 |
1.0 |
1.04 |
1.1 |
1.16 |
1.2 |
PS: 1.Qhov qhov kev kho kho qhov tseeb tau txiav txim siab raws li qhov tseem ceeb nruab nrab ntawm ntau cov koog. Rau cov koog me ({0}}} 5 ~ 15), ntau dua los ntawm 0.95; Rau cov koog loj (50-200}), muab ntau ntxiv los ntawm 1.08.
2.Qhov kev kho siab tshaj qhov tseem ceeb yog kwv yees qhov tseem ceeb thiab yog rau siv xwb.
Kev kho nyob rau hauv cov cua sib txawv, inlet huab cua kub, thiab dej ntws dej:
Qhov Peev Xwm Cua Txias=} cua muaj peev xwm los ntawm rooj 1 × Nyem K3
Tiag tiag dej ntws= dej ntws los ntawm lub rooj 1 × Nyem K3
Lub Neej Dej Kuj{{0 {0}} dej tsis kam los ntawm rooj 1 × K2 × K4
Piv txwv li:Xaiv yg -20 cua txias, lub txias txias chev ntsej muag cua nrawm yog 2.5 m / s. Raws li cov lus 1, lub peev xwm txias txias yog 150.8 KW, dej ntws yog 26.21 ML / H, thiab dej tsis kam yog 14.07 kpa. Txheeb xyuas qhov tseeb muaj peev xwm ua kom muaj peev xwm txias, dej tsis kam thaum muaj cua sov kub yog 10 degree, inlet dej kub yog 7 degree, thiab qhov hluav taws xob kub yog 12 degree.
Kev daws:Los ntawm cov lus K1, qhov kho qhov tseeb k 1=1. 14. Los ntawm cov lus K2, qhov kho qhov tseeb k {4 4}}. 27.
Yog li ntawd:
Tiag tiag muaj peev xwm txias (q)=} Tus Qauv Txawj Ci Txias × K {}}}. {}}. 91 kw
Tiag dej ntws (v)=} Cov qauv dej ntws ntws × K 1=26. {}}. 88 mp / h
Cov dej tsis kam (p)=} Cov qauv dej tsis kam × K 2=14. {}. 87 kpa
Cua Sov, Dej Ntim, Dej Tsis Txaus
Cov Cua Ua Cua Sov: Cua Inlet Kub 15 Qib, Dej Inlet Kub 60 degree
|
Tus qauv |
Ob-kab yeeb nkab |
Plaub-kab yeeb nkab |
Rau-kab yeeb nkab |
Yim-kab yeeb nkab |
||||||||
|
Cua sov (Kw) |
Dej ntim (m/h) |
Dej tiv (KPA) |
Tso kev sov (Kw |
Dej ntim (mh) |
Dej tiv (KPA) |
Tso kev sov (Kw) |
Dej ntim (m³h) |
Dej tiv (KPA) |
Tso kev sov(Kw) |
Dej ntim m/h) |
Dej tiv (KPA) |
|
|
Zk -05 |
34.1 |
3.23 |
10.1 |
50.6 |
5.01 |
9.76 |
59.2 |
6.49 |
16.99 |
77.1 |
7.85 |
10.44 |
|
Zk -10 |
67.1 |
5.89 |
10.5 |
99.8 |
10.35 |
11.65 |
124.8 |
12.96 |
10.08 |
151.0 |
15.70 |
12.82 |
|
Zk -15 |
101.8 |
9.16 |
9.8 |
149.7 |
15.08 |
7.21 |
173.5 |
19.5 |
12.11 |
205.1 |
23.52 |
15.12 |
|
Zk -20 |
135.6 |
12.14 |
9.8 |
199.0 |
20.16 |
8.25 |
248.8 |
26.21 |
14.07 |
289.3 |
31.96 |
17.48 |
|
Zk -25 |
168.7 |
15.83 |
11.6 |
249.5 |
25.12 |
10.24 |
311.2 |
33.90 |
11.77 |
353.3 |
39.11 |
14.76 |
|
Zk -30 |
202.6 |
19.2 |
11.8 |
304.5 |
30.12 |
11.16 |
380.9 |
38.90 |
13.10 |
448.3 |
47.00 |
16.28 |
|
Zk -40 |
270.4 |
24.82 |
12.4 |
399.2 |
40.03 |
12.93 |
480.8 |
51.61 |
15.73 |
592.4 |
62.27 |
19.20 |
|
Zk -50 |
337.3 |
30.61 |
10.4 |
512.3 |
50.25 |
7.47 |
556.8 |
64.52 |
17.00 |
641.8 |
74.93 |
15.70 |
|
Zk -60 |
404.7 |
37.24 |
9.4 |
609.4 |
60.04 |
7.47 |
581.2 |
77.42 |
17.00 |
766.8 |
93.67 |
15.70 |
|
Zk -80 |
539.5 |
49.1 |
9.1 |
796.0 |
79.88 |
8.5 |
386.2 |
102.89 |
19.5 |
1006.0 |
124.62 |
17.9 |
|
Zk -100 |
674.5 |
61.38 |
9.5 |
985.1 |
99.41 |
8.5 |
1127.6 |
128.35 |
19.5 |
1272.3 |
155.46 |
17.9 |
|
Zk -120 |
808.9 |
73.65 |
9.5 |
1185.9 |
118.91 |
8.5 |
1362.5 |
153.91 |
19.5 |
1533.6 |
186.51 |
17.9 |
|
Zk -160 |
1077.8 |
101.65 |
11.2 |
1576.0 |
158.48 |
10.3 |
1688.4 |
204.67 |
20.1 |
2083.2 |
255.93 |
32.4 |
|
Zk -200 |
1346.2 |
127.25 |
12.8 |
1970.8 |
199.3 |
13.1 |
2032.7 |
255.86 |
26.4 |
2606.2 |
310.22 |
42.4 |
Nco tseg: 1. Chav ntsuas txoj kev ua tau zoo ntawm cov thoob plaws lub taub hau ceev ntawm 2.5m / s
2. Lub coil yog lub hom phiaj dual yog lub kauj rau cov ntawv thov txias thiab txias
Cov haujlwm thiab cov txiaj ntsig ntawm AHUS
- Kev Pom Cov Khoom Cua Thiab Purification: Ahaj lim thiab ntxuav cov huab cua, tshem cov paug tsis huv thiab ua kom muaj kev noj qab nyob zoo sab hauv tsev.
- Tswj Qhov Kub: Lawv muab cov tshuaj tswj kom meej dhau kev tswj cua sov thiab cua txias, tswj cov ntsuas hluav taws xob sab hauv tsev.
- Kev cai vaum: Ahaj kho cov av noo kom muaj kev nplij siab thiab tiv thaiv cov khoom siv rhiab lossis cov khoom siv.
- Kev muab qhib: Lawv qhia cov cua ntshiab thiab tshem tawm cov huab cua huv si, txo cov roj cev (txo cov pa kom zoo.
- Zog Efficiency: Niaj hnub no Ahabnively Zog cov yam ntxwv xws li kev rov qab los ntawm tshav kub, thiab kev tswj cov kiv cua ceev, tswj cov tshuab siab.
Blower: Blower Bearings siv lubricated precision pob cov kab ke yog ua los ntawm cov kab ke ntawm cov kauj vab, thiab tuaj yeem nqus cov suab nrov thiab muaj peev xwm nqus tau cov suab nrov. Lub impeller ntawm lub purification tshuab cua txias yog tsim los ntawm cov duab zoo li ntawm aerodyamics, nrog siab ua haujlwm thiab lub suab nrov tsawg.
Nto txias dua: lub raj raj thiab cov ntawv loj tau coj los ua. Lub raj tooj liab tooj thiab cov ntawv nplaum tau nruj sib zog los ntawm cov tshuab lossis kuaj ntawm 1.6mpa cua siab ua kom tiav qhov kev hloov pauv cua sov zoo tshaj plaws. Lub tais condensate yog ua los ntawm cov qauv zoo steel phaj lossis soob ua npuas dej yog ntau dua rau cov tshuaj tua hluav taws xob ntxiv rau cov condensate, uas tau txais cov national patent
Lim: Koom Haum Meas, Nruab Nrab thiab High Efficiency Filtration Fages los saib xyuas qhov kev lim dej, muab cov hauv paus scientific rau kev lim hloov. Tseem ceeb, nruab nrab thiab siab ua hauj lwm siv lim dej, nrog rau kev yees duab yees duab thiab hluav taws xob lim dej yuav raug teeb tsa raws li cov tseev kom muaj.
